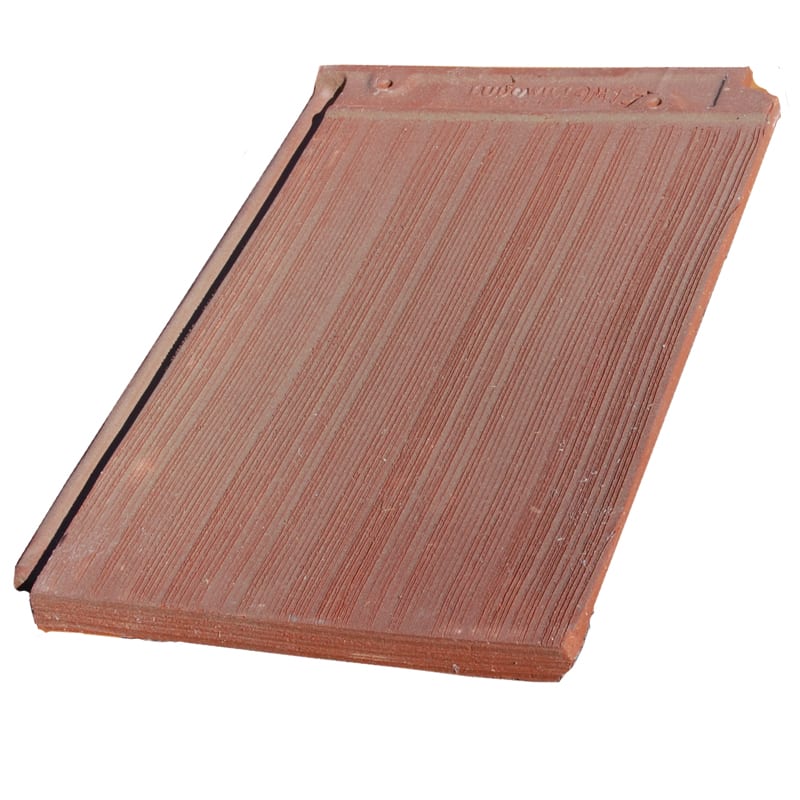

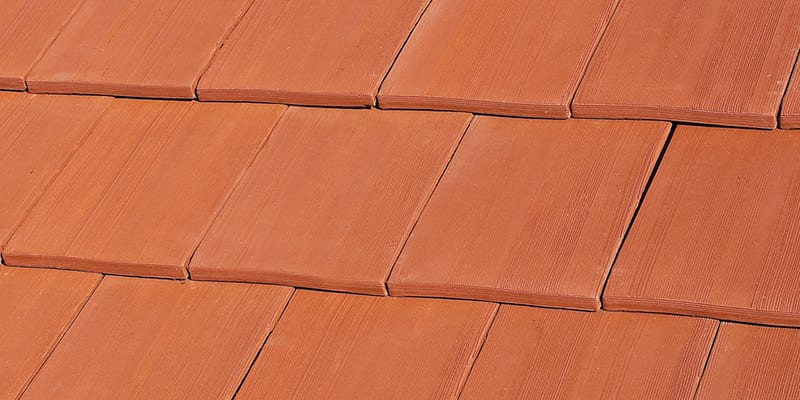

Ludowici’s Williamsburg 16″ interlocking clay roof tile has a scored sawn wood shake texture and a square butt giving it the same texture and character of wood shakes. Williamsburg 16″ terra cotta roof tiles have a permanent non-fading finish and will never rot or curl. And unlike wood, rubber or plastic shakes, Williamsburg tiles are Class A fire resistant, easy to install, maintenance-free and have fewer pieces per square than most alternatives. They are Grade 1 ASTM tile and carry Ludowici’s 75-year material warranty, so year after year you can enjoy the beauty of a shake-look roof in even the harshest climates. Williamsburg terra cotta roof tiles are also available in a smaller 14″ profile.
Colors & Textures
Testing & Certifications
|Weight Per Square||750 lbs.|
|Pieces Per Square||109 pcs.|
|Overall Size||10-3/4" x 16" x 7/8"|
|Exposure||10-1/8" x 13" x 7/8"|
|Installed Barrel Height Off Deck||N/A|
|1||WILLIAMSBURG_16-100||SECTION AT EAVE WITH UNDER EAVE||Download PDF||Download AutoCAD|
|2||WILLIAMSBURG_16-101||SECTION AT SIDE WALL||Download PDF||Download AutoCAD|
|3||WILLIAMSBURG_16-102||SECTION AT HEAD WALL||Download PDF||Download AutoCAD|
|4||WILLIAMSBURG_16-103||SECTION AT RAKE EDGE WITH DETACHED RAKE||Download PDF||Download AutoCAD|
|5A||WILLIAMSBURG_16-200||SECTION AT V-HIP||Download PDF||Download AutoCAD|
|5B||WILLIAMSBURG_16-201||SECTION AT #118 HIP||Download PDF||Download AutoCAD|
|6A||WILLIAMSBURG_16-300||SECTION AT V-RIDGE||Download PDF||Download AutoCAD|
|6B||WILLIAMSBURG_16-301||SECTION AT #211 RIDGE||Download PDF||Download AutoCAD|
|6C||WILLIAMSBURG_16-302||SECTION AT #211 VENTED RIDGE||Download PDF||Download AutoCAD|
|7||WILLIAMSBURG_16-400||SECTION AT FIELD CUT VALLEY||Download PDF||Download AutoCAD|
Download Installation ManualsEnglish
A tile installed at the intersection of hip(s) and ridge(s).
A tile that is shaped to cover the uppermost horizontal part of the roof.
A tile installed at the bottom of the hip, also known as bullnose.
Closed Ridge End
Closed-end tile installed at the gable end of the ridge.
A tile that is shaped to cover the external angle formed by the intersection of 2 sloped planes.
Ludowici’s Williamsburg 16” clay roof tile is available in all standard and custom colors developed by Ludowici.
Ludowici’s Williamsburg 16” clay roof tile features a weathered base texture. If you prefer a smooth texture, please see Classic 16″. Williamsburg 16″ can be customized with the following textures:
NOA No. 17-0719.09 Morando 16Download
Texas Department of Insurance - Evaluation ReportDownload
IAPMO E1077 R0452Download
Florida Building Code - Evaluation ReportDownload
Ludowici Clay Roofing Tile - Glazed & Unglazed OSHA GHS SDS 2014Download
Ludowici Clay Roofing Tile - Glazed & Unglazed China GHS SDS 2014Download
